Pharmaceutical factory purified water preparation system

• GangTong
• 2025-08-06

　　product description

　　A standard PWG series purified water preparation system can produce 1-50 tons of purified water that meets the standards per hour.

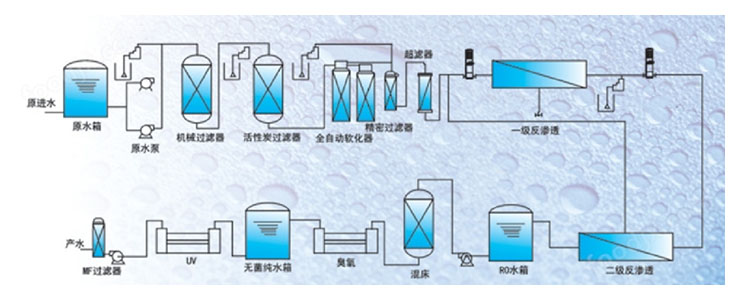

　　The principle of the PWG preparation system is to prepare purified water that meets the quality standards of the United States Pharmacopeia USP, European Pharmacopeia EP, and Chinese Pharmacopeia CP, starting from urban water supply and passing through water pretreatment including multi-media filters, activated carbon filters, softeners, and secondary or tertiary RO systems with optional EDI or mixed resin beds.

　　The purified water preparation system is suitable for solvent water, cleaning water or diluent for ordinary drugs in pharmaceutical factories, as well as injection water sources.

　　Working principle

　　Although urban water supply has undergone pre-treatment, it still cannot meet the requirements for pharmaceutical water. Urban water supply still contains a large amount of sediment, suspended solids, soluble substances, colloids, chemical residues, viruses, bacteria, heavy metals, and a large amount of hard ions such as calcium, magnesium, and iron. Therefore, a series of unit operations must be carried out to remove them. The preparation of purified water can be achieved through different unit combinations based on the water quality report of the customer's raw water.

　　Product Features

　　1. Water system design based on comprehensive analysis of raw water quality

　　2. Professional software for dynamic simulation and design of water systems

　　3. Zero chemical addition

　　4. Adopting horizontal cross flow filtration technology, with less quartz sand usage and higher filtration rate

　　5. Coconut shell activated carbon with higher iodine value is more effective in removing residual chlorine and oxides

　　6. Use efficient resin and reduce salt usage for softening and regeneration by 2/3

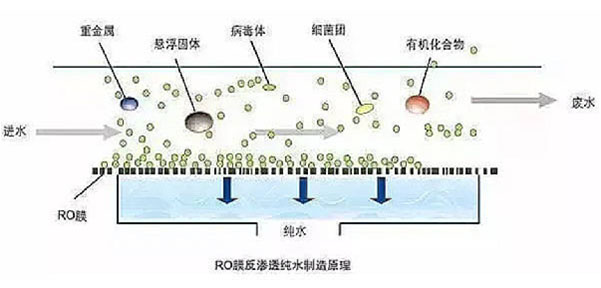

　　7. Low pressure energy-saving RO membrane with lower power consumption

　　8. Adding post-treatment system products to improve water quality

　　Product advantages

　　1. Modular design, easy arrangement and combination, and lower operation and maintenance costs

　　2. RO membrane has a 3-year quality guarantee, eliminating any worries

　　3. Concentrated water recycling improves the overall yield of the machine and reduces wastewater discharge

　　4. The system operates continuously without the need for pasteurization

　　Product specifications
