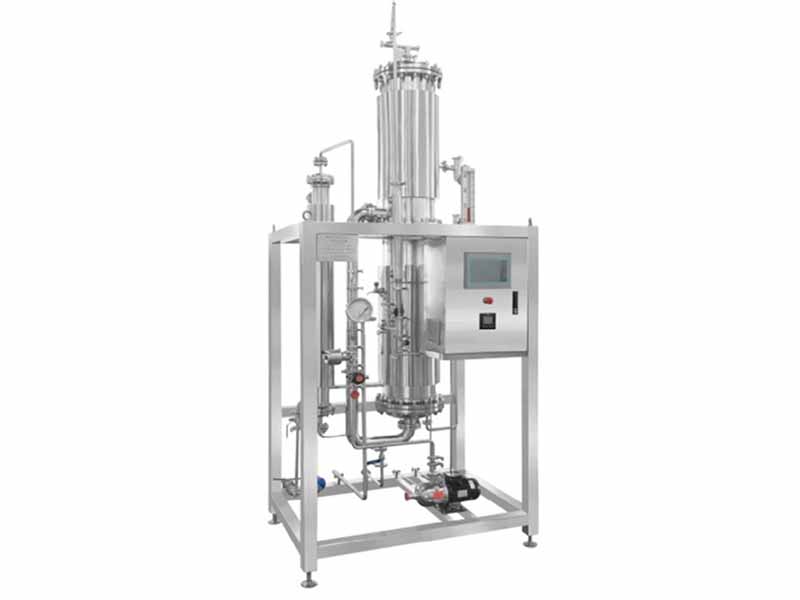

Pure steam generator

• GangTong
• 2025-08-06

　　product description

　　A standard PSG series pure steam generator can produce 0.2-3 tons of pure steam that meets EN285 and HTM2031 requirements per hour. The condensed water of the pure steam meets the quality standards of the United States Pharmacopeia USP, European Pharmacopeia EP, and Chinese Pharmacopeia CP for injection water.

　　The principle of PSG is to use industrial steam or electric heating to evaporate purified water and prepare pure steam.

　　Suitable for disinfection of pharmaceutical equipment, hospital medical supplies, and other applications that require moist heat sterilization.

　　Product features and working principle

　　Product Features

　　1. The evaporator adopts a double tube plate sanitary design

　　2. The high-speed cyclone separates endotoxins and removes them more thoroughly

　　3. The separator does not contain any internal components and is designed to be absolutely hygienic

　　4. Large space evaporation and gravity settling are more effective

　　5. The immersion tube lifting design eliminates the "hot spots" on the dry tube

　　6. More efficient evaporation effect

　　7. Maintain space as small as 600mm

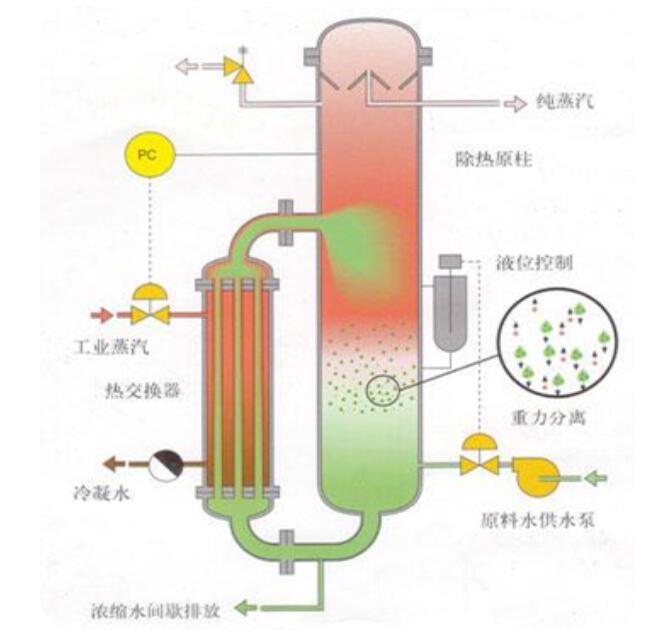

　　Working principle

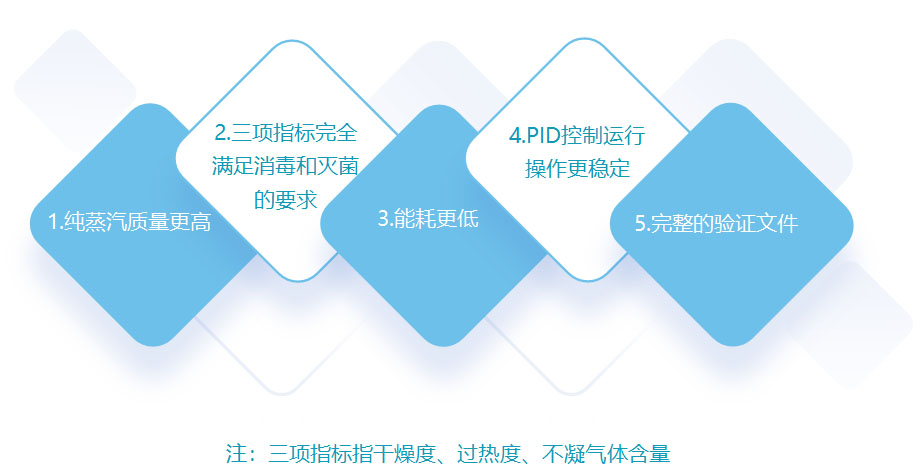

　　Product advantages

　　Product specifications
