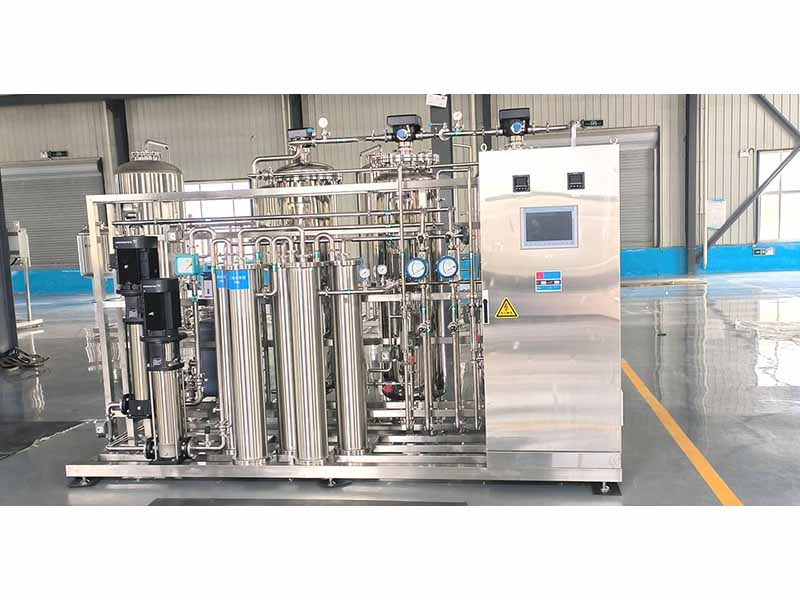

Hospital pure water preparation system

• GangTong
• 2025-08-05

　　product description

　　A standard HPWG series hospital pure water preparation system can produce 1-15 tons of purified water that meets the standards per hour.

　　The principle of the hospital pure water preparation system is to prepare purified water that meets the quality standards of the United States Pharmacopeia USP, European Pharmacopeia EP, and Chinese Pharmacopeia CP, starting from urban water supply, through water pretreatment including multi-media filters, activated carbon filters, softeners, and secondary or tertiary RO systems with optional EDI or mixed resin beds.

　　The hospital pure water preparation system is suitable for hospital preparation water, cleaning water, diluents, and traditional Chinese medicine decoction.

　　Product Features

　　1. Water system design based on comprehensive analysis of raw water quality

　　2. Professional software for dynamic simulation and design of water systems

　　3. Zero chemical addition

　　4. Adopting micro sand filtration technology, using less quartz sand and higher filtration rate

　　5. Coconut shell activated carbon with higher iodine value is more effective in removing residual chlorine and oxides

　　6. Use efficient resin and reduce salt usage for softening and regeneration by 2/3

　　7. Low pressure energy-saving RO membrane with lower power consumption

　　8. Adding post-treatment system products to improve water quality

　　Working principle

　　Although urban water supply has undergone pre-treatment, it still cannot meet the requirements for pharmaceutical water. Urban water supply still contains a large amount of sediment, suspended solids, soluble substances, colloids, chemical residues, viruses, bacteria, heavy metals, and a large amount of hard ions such as calcium, magnesium, and iron. Therefore, a series of unit operations must be carried out to remove them. The purified water preparation system can adopt different unit combinations based on the water quality report of the customer's raw water to achieve the final goal. The specific flowchart is as follows:

　　Product advantages

　　1. The integrated modular design and compact arrangement of the pry mounted module make installation and debugging convenient and fast

　　2. RO membrane has a 3-year quality guarantee, ensuring worry free operation and lower maintenance costs

　　3. Concentrated water recycling improves the overall yield of the machine and reduces wastewater discharge

　　4. The system operates continuously without the need for pasteurization

　　Product specifications
